Tuesday, February 1, 2011

Mercedes W02 rendering revealed


Mercedes W02 rendering, 2011
Mercedes have published a rendering of their new 2011 F1 car, the W02.
The image shows the team have adopted a wide, flat nose similar to that seen on the Red Bull RB6 last year.
They have reverted to a conventional air intake in place of the radical split airbox used on the W01 from the Spanish Grand Prix last year.
But as with many of the car launches expect the car’s aerodynamic package to be revised before the first race of the year in Bahrain.
The image first appeared on the website of German newspaper Bild.
The W02 is due to be run for the first time on Tuesday at Valencia.

Lotus T128 launch – first pictures

31 January 2011 by Keith Collantine
Lotus have revealed the first images of their 2011 F1 car which is now called the T128.
The car was originally supposed to be called the TL11 which, according to the team, was to “simplify what could have been another point of contention” with Renault over the use of the name ‘Lotus’.
When asked by F1 Fanatic on Twitter about the change of name Tony Fernandes said:
Because we are continuing with history. We are a new dynasty but tradition continues.
Tony Fernandes
One of the most striking features on the car is the use of a ‘blade’ roll hoop with a split air intake. However the central part of the ‘blade’ has to be thicker because of the change in the 2011 rules.
Mercedes pioneered the design last year but the first picture of their new W02 shown yesterday indicated they are not using such a layout this year.
Lotus’s chief technical officer Mike Gascoyne has high hopes for the new car:
I think that basically this car looks like a front-running car in every area. We said very clearly that we want to start challenging the established teams and I think that’s very achievable.
Mike Gasoyone
The team also confirmed the T128 does not have a Kinetic Energy Recovery System. Chief operating officer Keith Saunt said:
If KERS was going to get us from eighth to sixth then we’d have it. But when you look at the weight of it and some of the engineering challenges, I think it’s a good decision not to start with it. We might end up with it, who knows?
Keith Saunt
The team switch from Cosworth to Renault power this year and the T128′s gearbox is sourced from Red Bull.
Tony Fernandes’ Air Asia brand features prominently on the car. The airline previously sponsored Williams. The T128 also sports the logos of energy drink EQ8.
The car will be shown in public at Valencia tomorrow and be given its first run by Heikki Kovalainen on Wednesday.

Sauber C30 – Launch Detail and Analysis

Now simply known as Sauber Motorsport the Team are embarking on their second as a born-again independent. Their new car, the C30 has been completed under the technical leadership of Ex-Force India TD James Key. James bring his experience from the budget conscious FIF1 team and its forebears Jordan\Midland\Spyker.  Aiding key are two Long term Sauber staff, as Christoph Zimmerman as Chief Designer and Seamus Mullarkey leading the aero dept.
Development was held back last year as the team focussed its resources on the new car, which first hit the wing tunnel in May. This switch in resource was partly the reason the exhaust blown diffuser was not developed in 2010. Their new car sports just such a device, with an interesting twist. Otherwise the car is largely a logical evolution of the already quite advance concept of the C29. With Key having sorted the Ferrari engine installation problems and the cars ride height sensitivity which blighted the teams early season last year, Now the team can expect a strong run in the midfield for 2011.
A slightly higher and "V" sectioned nose for the C30
Sauber went the right direction with the front of the chassis last year. So this C30 doesn’t look too different in this regard. The front end is slightly higher, with eh slight “V” section, while the nose cone is slightly wider. Current the turning vanes and front wing are carried over from the C29, so we can expect Sauber to also adopt some more typical concepts for these parts, especially the turning vanes which currently differ to the conventional shaped vaned adopted by most teams. Also the philosophy of evolving the monocoque extends the roll structure, the roll hoop is now supported by four pylons, creating an exaggerated undercut for better airflow to the rear wing.
New roll hoop now supported by four pylons
Either side of the tub, the sidepods now sport a slightly squarer profile, the inlets being “U” shaped rather than triangular as they were last year. Yet this bulkier shape still allows for a huge undercut, leading back to a slimmed coke bottle shape, which now ends with a vertical slit to allow cooling air to escape early, and also allowed the exhaust to exit close the floor and the cars centreline. Also aiding cooling is the enlarged exit above the gearbox.  While the top body exhibits no form of shark fin. Routing hot air out through here, keeps the tail of the coke bottle shape slim, for greater airflow over the diffuser.
Cooling exit over the gearbox keeps the sidepods slimmer
In fact the diffuser is not quite as simple as the first pictures suggest and during the unveiling the diffuser was covered with a tarpaulin. However, I was able to look down onto the top of the diffuser. Sauber have kept the gearbox and sidepods so narrow that they have created a channel between the outer tunnels, which the exhaust blows through. This would work the centre section of diffuser, which is typical struggling for airflow, by the lower ride height of the step beneath the car.
Saubers EBD points the exhaust into a channel and partly through the starter hole (yellow)
Exhausts close the cars centreline blow into a channel in the middle of the diffuser

Blowing the gurney flap on the edge of the diffuser and starter hole aid downfroce
Above this the on-trend exposed beam wing has been created by shaping the crash structure within the rules to bend underneath the wing. Currently the beam wing is a simple straight slot-less affair. This could be made work harder in conjunction with the blown diffuser, by adding a longer section in the middle 15cm of the wing.
Exposed beam wing is a big trend this year
Another rear wing aid to the diffuser is the addition of a series of vanes hanging below the endplates. These sit within a legal loophole in the rules, and effectively make the diffuser longer than the rules envisaged.
These vanes on the RW endplate help flow out of the diffuser
The upper rear wing, is adjustable and this system is known with the technical F1 staff as the ‘Drag Reduction System’ DCS. Saubers is a elegant solution to making the flap hinge about its trailing edge. A simple metal lever moves to open the slot gap up, reducing drag and boosting top speed.
The Driver Adjustable Rear Wing is known as 'DCS' Drag Control System within the sport
Mechanically the car retains the Ferrari drive train. So again the car will sport the Ferrari gearbox, which is a hybrid Titanium and Carbon fibre construction. Therefore Sauber will adopt Ferrari KERS and their inboard rear suspension geometry. Technical Director James Keys explained the pushrod mountings, place the hardware at the very front of the gearbox, this keeps the parts accessible, but does not affect rear aerodynamic volume. Key also confirmed Sauber have designed and built the suspension that attaches to the Ferrari gear case, while the Hydraulics and Electronics are all Sauber designed too.
Sauber continue to use OZ Racing wheels with hollow spokes

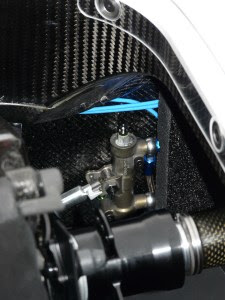

Drivers brake bias adjuster

Renault R31 – Launch Details and Analysis

What was formerly the Renault F1 Team and now Lotus Renault GP (I’ll use the term LRGP for this article) have unveiled their new car the R31. It seems some critical details are not fitted to the car for its unveiling, indeed the car was shown only briefly to the press before it was covered back up and returned to the garage. Despite the mystery surrounding the cars exhaust exit location, its clear this is a very new design for the team. In creating this the team were given a mandate to take risks, which probably explains the very different front and rear end treatments. But in packaging the chassis to take KERS and meet the new weight distribution rules, the car has altered only 50mm (longer) and the major masses remain in largely the same locations.
The Raised "V" nose and undersut sidepods are apparent
While James Allison talked up the risks taken with the car, parts which I’m told are yet to be seen on the car, the basic R31 is a step change from the designs of the R29 and R30. Firstly the low straight nose, complete with integral turning vanes has gone. This is replaced by a more contemporary highly raised “V” nose, with the underside of the “V” being particularly rounded and the concave upper surface continues all the way to the nose tip. Only a simple set of turning vanes are fitted amongst the front suspension, but there’s now a lot more space to place additional vanes under the nose. As with most launch cars the front wing is a variation of last years wing and will not remain as it is for the whole of testing. As with last year the steering rack has been placed low in line with the bottom wishbone.
A simple roll structure, albeit with a strange stepped bodywork line
Around the cockpit the be-winged mirror mounts seen on the wind tunnel model are not present, but LRGPs usual large pointed mirror pods are carried over. The sidepod fronts are highly unusual, the inlet shape has gone towards a “U” shaped inlet, rather the “P” shape used by LRGP for several seasons. Additionally the inlet features two peeks, similar to those used by Ferrari. The resulting shape is highly undercut and the sidepods lead back to a exit the tapers outwards to meet the floor, the bulbous coke bottle exit of the past two cars has gone.
The lowline rear end features downward tapered sidepods
Although small cooling outlets next to the cockpit are evident, there were no other apertures made into the sidepods at all. Their unusual tapered exit, created a wide low duct exiting across the top of the diffuser. This low line effect is further accentuated by the move to Pull Rod rear suspension, the engine cover being wider at the bottom and very low around the gearbox. A simple tall cooling exit vents at the end of the tail, with in this is the oil cooler fed by the F-duct-like inlets aside the airbox. For the wing endplates, LRGP appear to have followed a red Bull solution by joining the endplate to the top of the diffuser. Curiously LRGP have not used a rear wing mounting pylon, the exposed beam wing, sits on two supports to mount to the rear crash structure. Around this area the Titanium of the gearbox is exposed to the airflow. It appears as though the differential is lower this year, although Allison couldn’t confirm this. Compared to the simplistic Ferrari diffuser, the Renault under tray is far more developed. Starting narrow and sweeping out to the maximum width, the diffuser is complemented by several fences.
Amongst all of this detail no exhaust pipe is apparent, This is clearly one of LRGPs trump cards. I understand the exhaust does not exit at the rear of the car. This leaves few reasonable option for the pipes location. Either above the gearbox or increasingly rumoured the exhaust routes forward and exits in front of the sidepods. I presume the aim if this were the case, would be to pull airflow from under the nose to create some front downforce and speed the flow up back towards the diffuser. We are being told to expect new parts on the car for its first tests. These are apparently both the exhaust and some parts at the rear of the car.
Aside from the Pullrod rear suspension the main mechanical changes are to accommodate KERS, the Renault engine again having the nose of the crank coupled to spur gears to drive the MGU. The MGU and power control unit PCU are all mad ein cooperation with Marrelli.  While the Battery pack is mounted beneath the fuel tank area. The Renault engine has not had any dispensations this year to increase power. Only the normal changes to package KERS and resolve any reliability issues are allowed.

Ferrari F150 – Launch detail & Analysis

Ferrari launched their F150 today in Maranello. While the car sports some interesting features, overall it must be seen as a conventional and literal approach to the new rules and carries the influence of the team’s two previous cars. This approach seems to suit Ferrari who has not worked well with extreme innovation in the past. They keep the car simple and gain the most potential from it. We can expect more extreme concept cars from several teams next week.
Firstly the front wing is last years; it even has the driver adjustable mechanism which is no longer allowed in 2011. However the nose cone will be fairly definitive, as it needs to match the front of the chassis and being a homologated part, cannot be structurally changed during the season. This front wing may be on the car for the opening test runs, but we will soon see an interim 2011 wing before a final version appears for Bahrain.
One by-product of the new rules restricting front chassis height is that a V-nose might not be desirable. As the height of the dash and front bulkheads are limited to a maximum height, the “V” nose might be inefficient. V-noses allowed more flow under the car without putting too much heavy structure high up. Now to maximise space under the nose we might see a return to the simpler rectangular chassis cross section, with the top edge at the 670mm limit, which creates the most space underneath. Thus the Ferrari has a near flat top and the line from the cockpit opening rises up 45mm from the dash to the front wheels.
The section of chassis attaching the suspension (subjectively) appears to longer.  Access hatches on the top of the chassis allow access to the pedals, heave spring and GPS aerial. Otherwise the front wishbone arrangement appears conventional, with the steering rack placed lower than the upper wishbone for better CofG and steering arm geometry.
Aero around the front end is largely carried over from 2010, with vanes hanging from the nose cone then larger bargeboards and pod wings mounted ahead of the sidepods. We can expect these to change in detail before Bahrain, Relatively simple mirrors are fitted and mated to a fin\vortex generator below. Similarly the roll hoop is a simple design, not as undercut as others. The sidepods themselves are an evolution of ideas from the past two years. The inlets have been made into a more distinct sideways “U” shape and the distinctive peak above the inlet is still there. This peak is now allied to a small removable panel, what this is for is not clear. As it appears the radiators are further back down the sidepod, following the same line as the break in the forward and rear section of sidepod bodywork. The panel might be for a cooling outlet, but perhaps for smaller oil\KERS coolers mounted alone in this area. The revised sidepod inlet creates a more aggressive undercut, although the sidepod has to be relatively wide (between the Shell and Acer logo) for the radiators to fit between the fuel tank and bodywork.
Sidepods then sweep into a coke bottle shape with a generous hot air outlet at its tail, this rounded rear sectionalso hides the exhausts that blow over the diffuser. Rather than poking out of the end of the sidepods, the exhaust is slash cut to exit through the side of the bodywork.  Aldo Costa hinted that the Exhaust and Rear Wing are areas for development between now and Bahrain.  The top body no longer sports a shark fin; a simple upstand is used in its place, although no doubt the fin may return in testing. As was raced last year the bodywork either side of the fin opens up to allow cooling.
At the back the rear wing is a new departure for Ferrari, the entire wing is mounted to the central pylon, and then the beam wing spans the endplates and sits fully expose din the airflow. It’s been Ferrari practice to split the beam wing either side of the crash structure for many years. The top rear wing is new, with the mechanism to allow the wing to open the slot up apparently inside the wings supporting pylon. The curved bracket protruding from the pylon moves up and down, probably by hydraulics fed up from the gearbox, to alter the wings flap position. Its possible to see the how the flap pivots via pins set into the flap trailing edge. A distinct “V” has been cut into the flaps trailing edge, probably to reduce its effective geometry, as it sits in airflow obstructed by the engine cover and wing adjusting mechanism.
With very few detailed of the diffuser, it appears its a very simple diffuser which echoes the single decker design Ferrari first raced with in 2009. No doubt the gurney, inner fences and boat tail will alter as the team gets more performance from the diffuser.
Being careful not to read too much into the cars launch specification the front wheels appear to be based on the 2010 vaned versions. New rules specify a maximum surface area for spokes and other similar parts of the wheel. Perhaps the narrow spokes make up for the surface area taken up by the vanes.
One item raised by Ferrari was their innovative suspension system, not the pull rod system that many expected, as the car boasts push rods at both ends. But Ferrari were rumoured around the pit lane to have run an interconnected suspension system last year. The front and rear suspension being linked to control the cars attitude. This could either be to control pitch (the nose rising or lowering through acceleration/braking) or warp (a mix of pitch and roll). Apparently used by Toyota and Williams without success in the past, this passive system could aid aerodynamics by keeping the underfloor in the correct attitude relative the track. However the front and rear suspensions may be interlinked, the rear suspension is certainly well packaged. Without the large lumps in the rear bodywork, Ferrari have clearly designed the various rockers, dampers and springs into a much smaller space. They appear to be positioned close to the front of the gearbox, as there is a dead area above the clutch and gear cluster, that is usually unoccupied. this set up sees the pushrods reaching forwards to operate the rockers. Renault adopted this approach last year. This set up is eased by the deletion of the rear torsion bars, so Ferrari have probably followed the increasingly common route of no rear side springs, instead the rear is supported solely by the third spring in heave or the antiroll bar in roll.
As double diffusers are banned the advantage to inclining the engine and gearbox by 3-degrees is lost now, so we can expect the engine is again mounted horizontal. With engines frozen, the only changes are reliability alterations (with the FIA’s permission) or changes to accommodate KERS. Ferraris engine man Luca Marmorini announced more changes to the engines pneumatic valve system (PVRS). This area was changed after reliability problems last year in the early races. Marmorini, who came back to Ferrari from Toyota, is thought to have brought ideas for a more efficient PVRS system with him. Worth not only reliability, but a increase in performance through lower friction and less engine degradation over the course its 3-4 races. The KERS system places the MGU offset from the front of the crank and attached to the oil tank, as the unit is cooled by the engines oil. The oil tank is quite large and Ferrari are suggested to also run another tank above the clutch within the gearbox.
The KERS battery pack is mounted inside the monocoque under the fuel tank (not within the actual tank and petrol!). As the batteries are denser than fuel this keeps a low CofG, already most teams have several centimeters of space under the fuel taken up by blocks of ballast, rising the fuel tank by an equal amount. One area Ferrari were clear that they have improved KERS on this year is the way the MGU charges when the car brakes. Marmorini stated this was improving the “dragging” of the system.
Little word has been made on the gearbox, Ferrari have adopted a titanium skeleton with bonded on carbon fibre panels for several years. Aside from the packaging of the pushrod suspension, this is expected to be largely carried over this year.
credits to Craig Scarborough (scarbsf1.wordpress.com)
